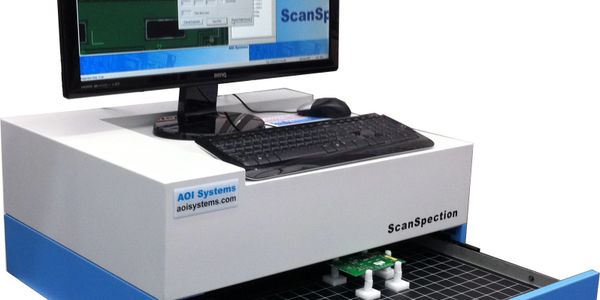

AOI Systems - First Article Inspection, AOI and Comparator

---

Powerful First Article Software

BOM/CAD Comparison and Corrections Prior to Assembly

Completed Assembly Not Required

Performing FA Programs Auto AOI

Includes All Software - FA, AOI and Comparator

$20K

Mounts Directly on Your Conveyor or Includes Optional Conveyor

Perfect Economical Solution Prior to Reflow

Scanner Mounted On Slide for Access to Remove Board and/or Make Corrections on the Spot

Automated First Article Inspection

CAD Import with Enhanced BOM Comparison Tool

Finds Any Deviation between CAD/P&P File and BOM FIle

Import File Created with Merged Data

Layout Viewer for Verification of Orientation and Polarity

Once FA is Completed System is Programmed for AOI

Automatic Optical Inspection

Check for Presence/Absence, Part Number, Skew, Polarity, Bridging, Tombstoning,  Etc.

Defect Report Generation with Error Map and Error List

SPC Data Collection for Identifying Trends

Inspections Can be Linked to Serial  and/or Lot Numbers

Operator Dependent Inspection Based On Golden Sample

No Programming Required

Golden Image Constitutes Total Recipe and is Saved for Future Runs

Ideal For Thru-Hole Inspection

Flips Between Golden Image and Live Image in Manageable Board Area Portions

Defect Report Generated with Error Map and Error List
